Programación

Primeros bocetos en Processing con Arduino.

Boceto 1:titilar un led (de la placa o conectado al pin 13)

void setup() {
pinMode(13,OUTPUT);
}
void loop() {
  digitalWrite(13,HIGH);
  delay(1000);
  digitalWrite(13,LOW);
  delay(1000);
}

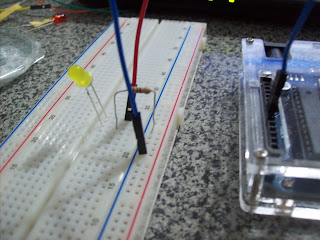

Boceto 2: titilar un led conectado al pin 2

void setup() {
pinMode (2, OUTPUT);
}

void loop() {
digitalWrite (2, HIGH);
delay (4000);
digitalWrite (2, LOW);
delay (3000) ;
digitalWrite (2, HIGH);
delay(2000);
digitalWrite (2, LOW);
delay (1000) ;
}

Boceto 3: 2 leds alternados

void setup() {
pinMode(2,OUTPUT);
pinMode(3,OUTPUT);
}

void loop() {
 digitalWrite(2,HIGH);
 delay(1000);
 digitalWrite(2,LOW);
 delay(1000);
 digitalWrite(3,HIGH);
 delay(1000);
 digitalWrite(3,LOW);
 delay(1000);
}


Boceto 4: 2 leds simultaneos

void setup() {
pinMode(2,OUTPUT);
pinMode(3,OUTPUT);
}

void loop() {
digitalWrite(2,LOW);
delay(1000);
digitalWrite(3,LOW);
delay(1000);
digitalWrite(2,HIGH);
delay(1000);
digitalWrite(3,HIGH);
delay(1000);
}

Boceto 5: 3 leds

void setup() {

pinMode (2,OUTPUT);
pinMode (3, OUTPUT);
pinMode (4, OUTPUT);
}

void loop() {

digitalWrite (4, HIGH);
delay (4000);
digitalWrite (4 ,LOW);
delay (2000);
digitalWrite (3, HIGH);
delay (2000);
digitalWrite (3, LOW);
delay (2000);
digitalWrite (2, HIGH);
delay (4000);
digitalWrite (2, LOW);
delay (2000);
digitalWrite (3, HIGH);
delay (2000);
digitalWrite (3, LOW);
delay (2000);

}
